Description
Video & Audio
Image Sensor
1/2.8″ CMOS sensor
Resolution
3840×2160(8 Megapixels)@25FPS
Lens
f=5.3-86mm/Max F1.6vvvvvvvvvvvvvvvvvvvvvv
Video Compression
H.265/H.264
Zoom
16X
Field of View
Horizontal: 54.2°-3.6°
Vertical: 41.7°-2.1°
Infrared Night Vision
Up to 80 meters(260ft); LED: 7pcs/Max 5.5W/850nm (Auto-switching with IR-cut filter)
Color Night Vision
With spotlights: 2pcs/4w/4000K (Adjustable)
Frame Rate
Mainstream: 2fps – 25fps (default: 25fps)
Substream: 4fps – 15fps (default: 10fps)
Code Rate
Mainstream: 2048Kbps – 8192Kbps (default: 6144Kbps)
Substream: 64Kbps – 512Kbps (default: 256Kbps)
Audio
Two-way audio
Power

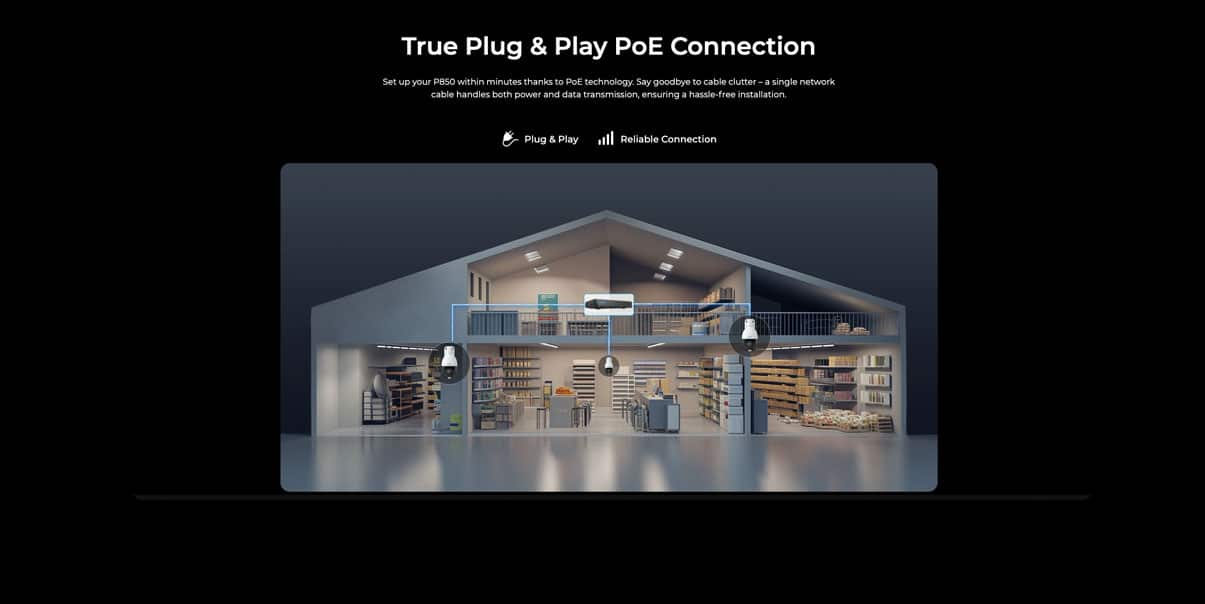

PoE
IEEE 802.3at, 48V, active
Power Requirements
DC Power
DC 12V⎓2A, <24W
Interface
Power Port
DC power port
Ethernet Port
One 10M/100Mbps; RJ45
SD Card Slot
Supports Max. 256GB microSD card
Reset Button
YES
Audio In/Out
Built-in microphone and speaker
Pan & Tilt
PT Angle(Max.)
Pan: 360°, Tilt: 90°
Pan Speed
1.4°-90°/s (configurable)
Tilt Speed
1.4°-56°/s (configurable)
Preset Points
Suppots 1 guard position & up to 64 preset positions
Patrol
Supports 1 patrol; up to 16 presets per patrol
Power-off Memory Function
YES
Auto Tracking
YES
Software
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
User Access
Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (2 main & 10 substreams)
Other Features
Smart Alarm
Motion detection; person detection; vehicle detection; animal detection
Time Lapse
YES
Smart Home Compatibility
Google Assistant
Software Features
Recording Modes
Motion-triggered recording (default); Scheduled recording, 24/7 recording
Working Environment
Operating Temperature
-10°C~+50°C (14°F~126°F)
Operating Humidity
10% ~ 90%
Weatherproof
IP66
Mechanical
Dimensions
373*177*140mm (Ceiling Mount)
Weight
2.34kg
