Description
Device Management
Camera

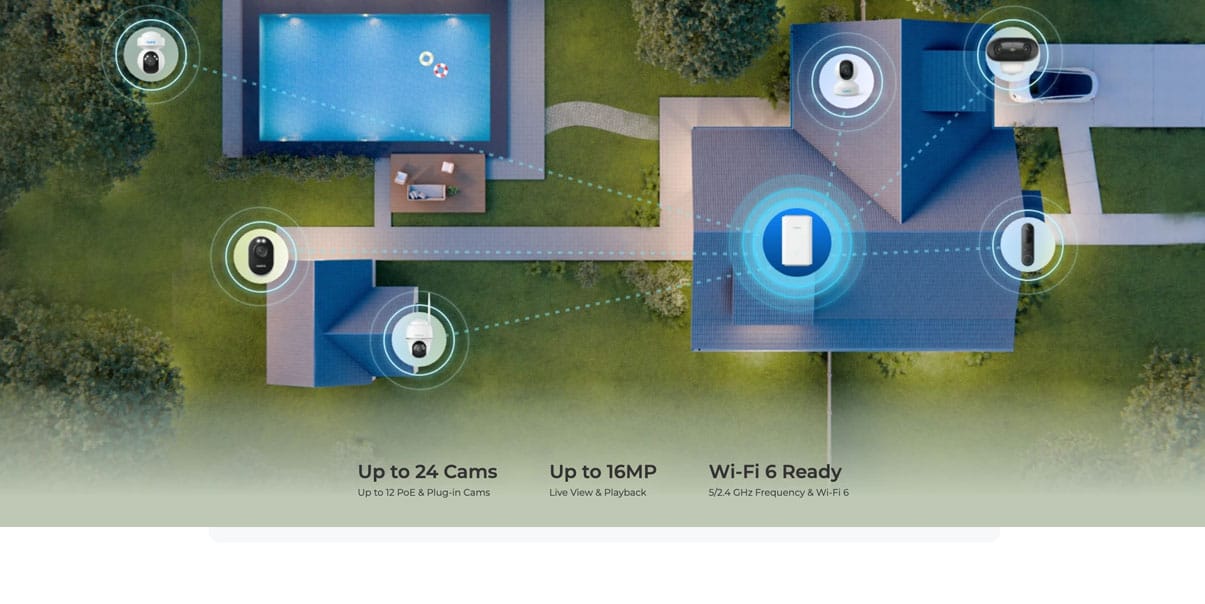

Up to 24 Cameras (up to 12 wired cameras)
Device Compatibility
All Reolink battery Wi-Fi cameras, Plug-in Wi-Fi cameras, and PoE cameras (Battery cameras require a firmware upgrade)
Safety Protection
Account access and sharing options for individual devices are only available through Home Hub Pro
Input/Output
HDMI
YES
USB
YES
Reset Button
YES
Power
DC 12V/2A
Speaker
Max.120dB
Ethernet
1 x RJ-45 10/100 Mbps self-adaptive (for WAN),1 x RJ-45, 10/100 Mbps self-adaptive (for IP cameras)

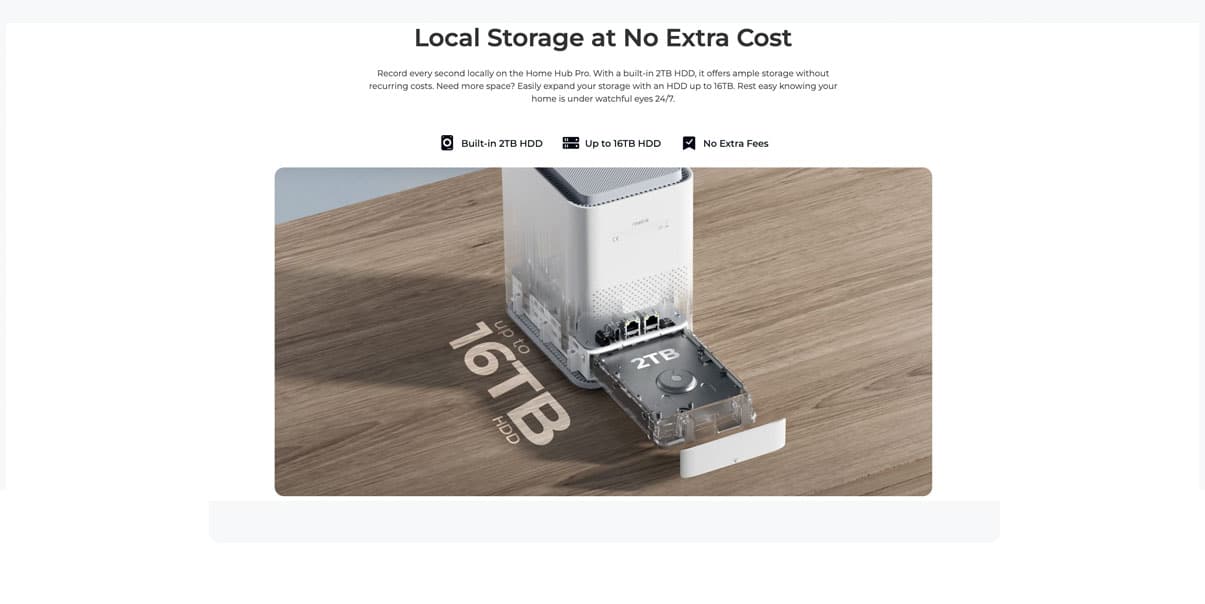

Storage
SATA
YES (1 x 2TB HDD included)
microSD Card Slot
Up to 512GB*1
Storage Encryption
AES-128 encryption algorithm
Preview & Playback
Live View
App, PC Client
Playback
Smart playback/event history
Wi-Fi
Wireless Standard
IEEE 802.11 a/b/g/n/ac/ax
Operating Frequency
2.4/5 GHz
Wireless Security
WPA/WPA2/WPA3
Sub-1 GHz
Operating Frequency
868/915MHz
System
Network Protocols
TCP/IP, UDP, DHCP, P2P, UPNP, RTSP,RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access
11 users (1 admin account & 10 shared accounts)
Smart Home
Google Assistant
Working Environment
Operating Temperature
-10℃~+45℃
Operating Humidity
10%~90%
Mechanical
Dimensions
185*133*222mm
Weight
1096g
