Description
Video & Audio
Image Sensor
1/2.8″ CMOS sensor
Resolution
7680×2160 (16MP) @ 20FPS
Lens
f=2.8mm/F1.6
Video Compression
Main stream: H.265 Substream: H.264
Zoom
N/A
Field of View
Horizontal: 180°
Vertical: 53°
Infrared Night Vision
30 meters (LED: 6pcs/20mil/850nm) (Auto-switching with IR-cut filter)
Color Night Vision
With Spotlight: 6pcs/1.6W/4500K/540-840 Lumens
Frame Rate
Main stream: 2fps – 20fps (default: 20fps)
Sub stream: 4fps – 20fps (default: 20fps)
Code Rate
Mainstream: 3072-12288Kbps (default: 10240kbps)
Substream: 128-2048Kbps (default: 1024kbps)
Audio
Two-way audio
Power

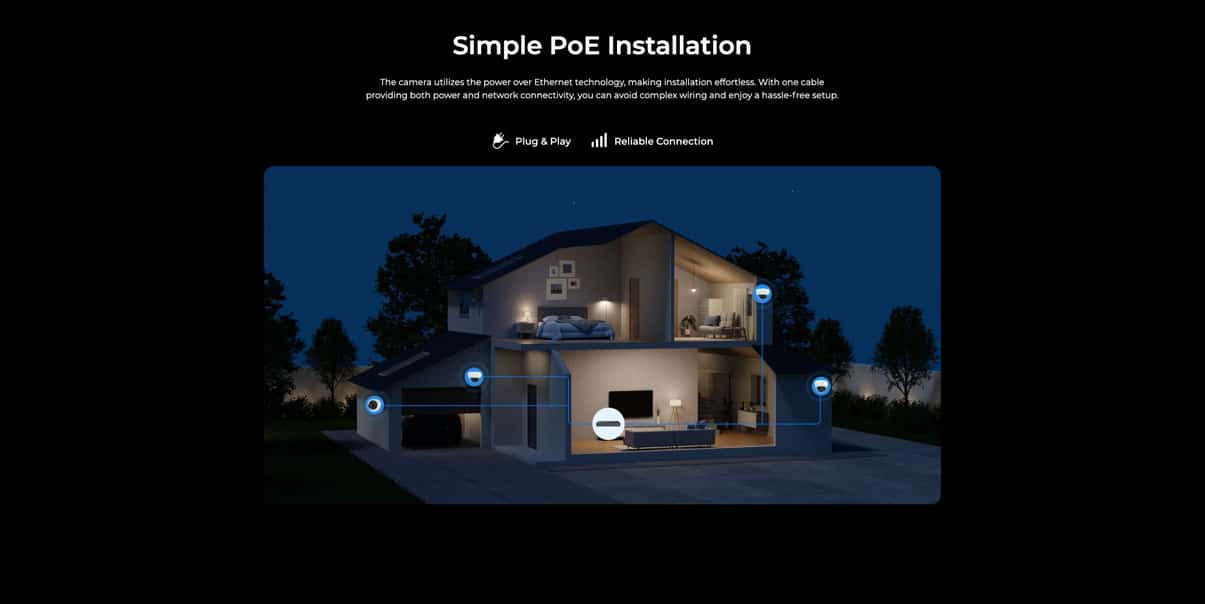

PoE
IEEE 802.3af, 48V, active
DC Power
DC 12.0V⎓1A, <12W
Interface
Power Port
DC power port
Ethernet Port
One 10M/100Mbps; RJ45
SD Card Slot

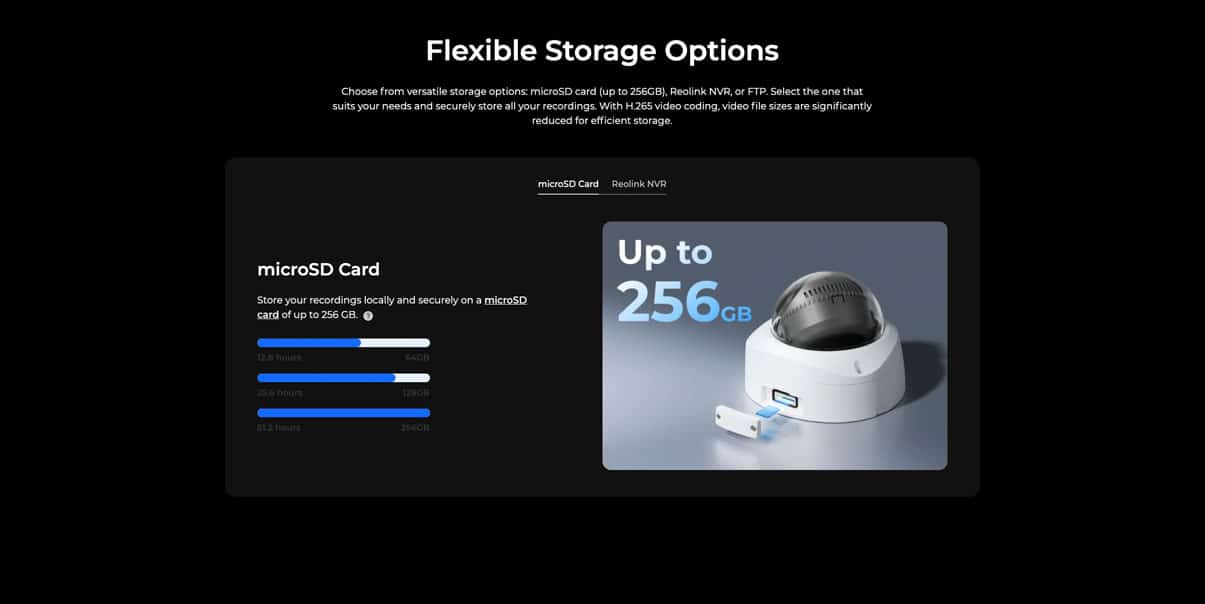

Supports Max. 256GB microSD card
Reset Button
YES
Audio In/Out
Built-in microphone and speaker
Software
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP,SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
User Access
Max. 20 users (1 admin & 19 user);
Max. 12 simultaneous streams (2 main & 10 sub streams)
Other Features
Smart Alarm
Motion detection; person detection; vehicle detection; animal detection
Recording Modes
Motion-triggered recording (default); scheduled recording, 24/7 recording
Time Lapse
YES
Smart Home Compatibility
Google Assistant
Working Environment
Operating Temperature
-15°C~+45°C
Operating Humidity
10% ~ 90%
Weatherproof

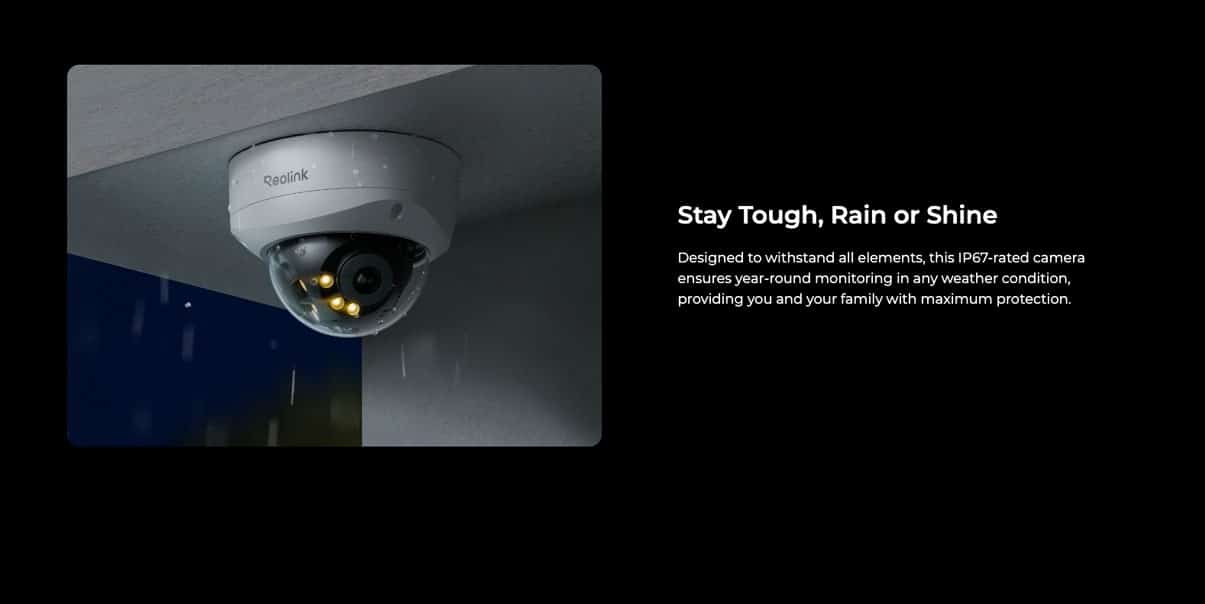

IP67
Mechanical
Dimensions
Ø137 * 98.5 mm
Weight
664g
