Description
Video & Audio
Image Sensor
1/1.8″ CMOS sensor
Resolution
5120×1440 (8 megapixels) @15fps
Lens
f=4mm，fixed
Video Compression
H.264/H.265
Field of View
Horizontal: 180°
Vertical: 50°
Infrared Night Vision
NO
Color Night Vision
With spotlights: 3pcs/2W/6500K
Frame Rate
Main stream: 10fps – 15fps (default: 15fps)
Sub stream: 10fps – 15fps (default: 15fps)
Code Rate
Main stream: 1024Kbps – 4096Kbps (default: 2048Kbps)
Sub stream: 256Kbps – 1024Kbps (default: 512Kbps)
Audio
Two-way audio
Power
Battery
5000mAh rechargeable battery (Battery life varies based on settings, usage & temperature.)
Solar
Reolink Solar Panel 2 (6W)
Bluetooth Standard
Bluetooth Standard
Bluetooth V5.0
Interface
Power Port
USB Type-C port
SD Card Slot
Supports Max. 128GB microSD card
Reset Button
YES
Audio In/Out
Built-in microphone and speaker
Wi-Fi
Wireless Standard
IEEE 802.11 a/b/g/n/ac/ax
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA/WPA2/WPA3
Software
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P
User Access
Max. 12 simultaneous streams (2 main & 10 sub streams)
Other Features
Smart Alarm
PIR detection; motion detection; person detection; vehicle detection; animal detection
PIR Detecting Distance
Adjustable, up to 10m (33ft)
PIR Detecting Angle
170° horizontal
Recording Modes
Triggered recording
Time Lapse
YES
Smart Home Compatibility
Google Assistant
Home Hub Compatibility
YES
Cloud Storage
Supports Reolink Cloud (available in selected countries)
Working Environment
Operating Temperature
-10°C~55°C (14°F~131°F)
Operating Humidity
20% ~ 85%

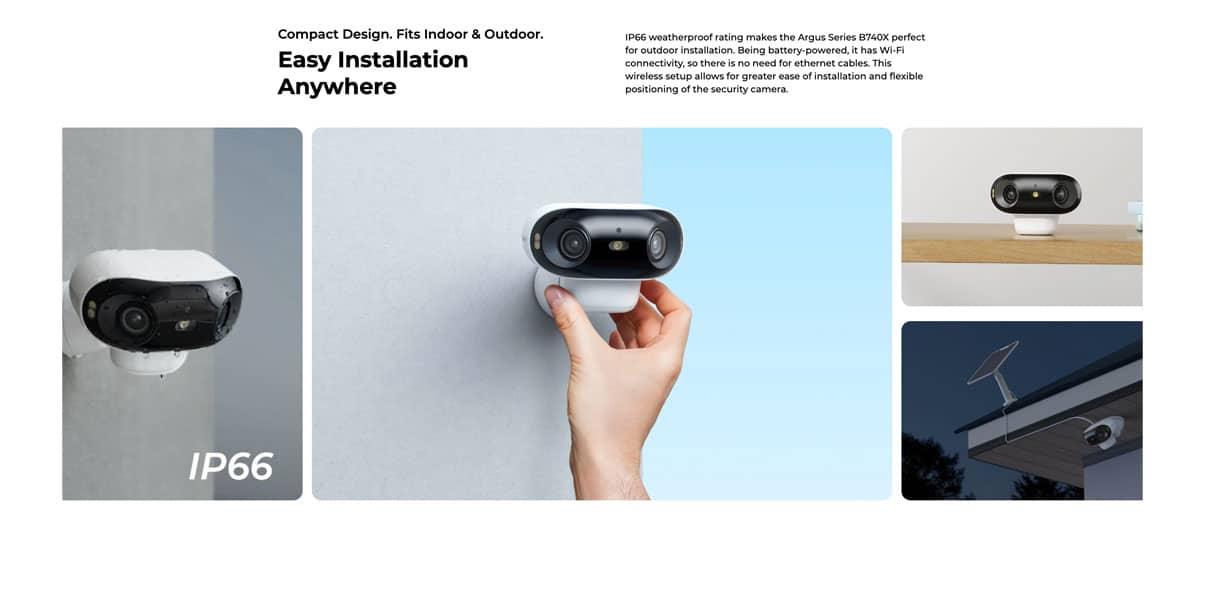

Weatherproof
IP66
Mechanical
Dimensions
128*87*80mm
Weight
400g
