Description
Video & Audio
Image Sensor
1/2.7″ CMOS sensor
Resolution
3840×2160(8 megapixels)@15fps
1920×1080(2 megapixels)@15fps
Lens
Video Compression
H.264/H.265
Field of View
Lens 1: Horizontal: 105°; Vertical: 55°; Diagonal: 123°
Lens 2: Horizontal: 43°; Vertical: 25°; Diagonal: 49.5°
Infrared Night Vision
Up to 30 meters (100ft);
LED: 2pcs/2.15W/850nm (Auto-switching with IR-cut filter)
Color Night Vision
With spotlights: 2pcs/6000K/295 Lumen (15Meters, Adjustable)
Frame Rate
Main stream: 10fps – 15fps (default: 15fps)
Sub stream: 10fps – 15fps (default: 15fps)
Code Rate
Main stream: 1024Kbps – 4096Kbps (default: 2048Kbps)
Sub stream: 64Kbps – 672Kbps (default: 672Kbps)
Audio
Two-way audio
Power

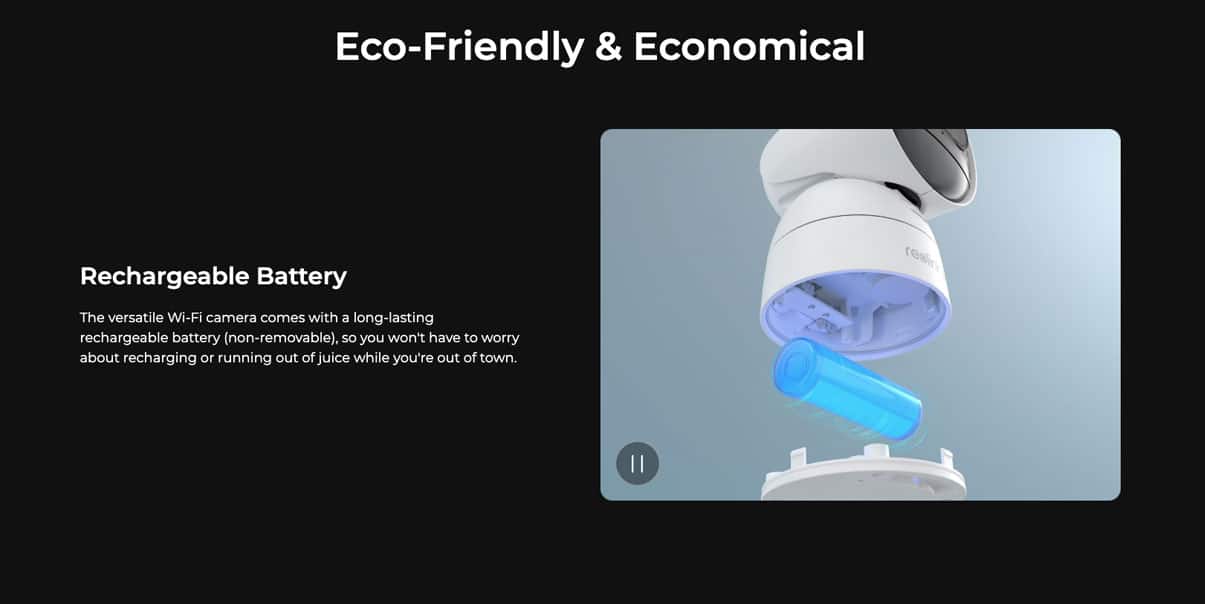

Battery
4800mAh rechargeable battery (Battery life varies based on settings, usage & temperature.)

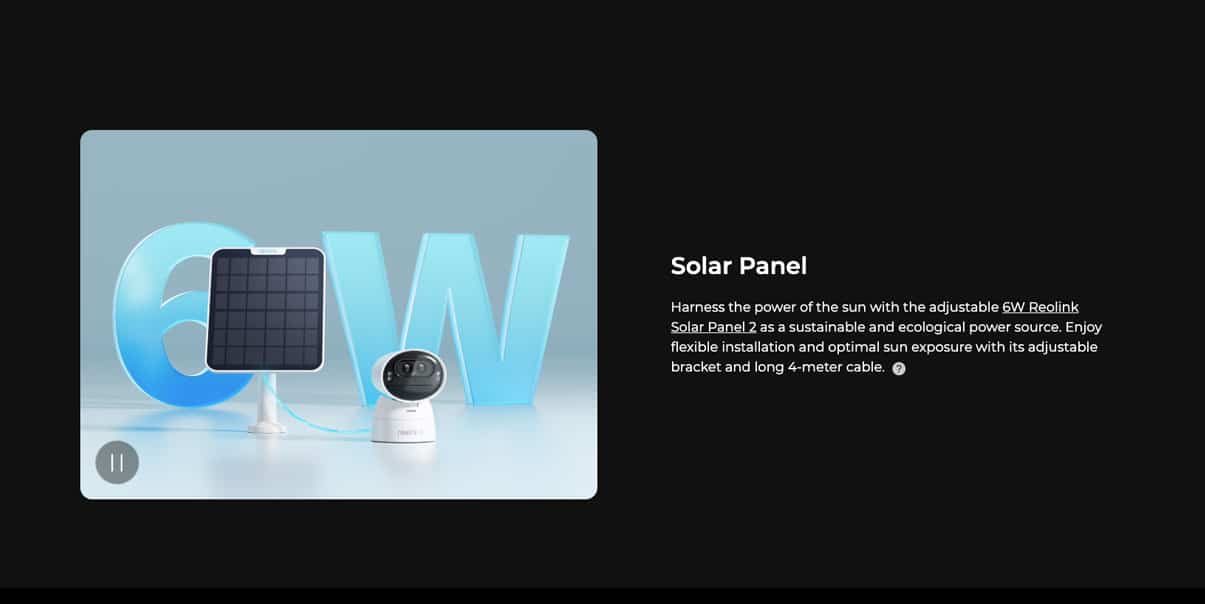

Solar
Reolink Solar Panel 2 (6W)
Interface
Power Port
USB-C port
SD Card Slot
Supports Max. 128GB microSD card
Reset Button
Yes
Audio In/Out
Built-in microphone and speaker
Pan & Tilt
PT Angle(Max.)
Pan: 355°, Tilt: 50° (PT speed is configurable)
Preset Points
Suppots 1 guard position & up to 32 preset positions
Patrol
Not Supported
Power-off Memory Function
YES
Auto Tracking
YES
Wi-Fi
Wireless Standard
IEEE 802.11 a/b/g/n
Operating Frequency
2.4 GHz/5GHz
Wireless Security
WPA/WPA2
Software
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P
User Access
Max. 12 simultaneous streams (2 main & 10 sub streams)
Other Features
Smart Alarm
PIR detection; motion detection; person detection; vehicle detection; animal detection
PIR Detecting Distance
Adjustable, up to 11m (36ft)
PIR Detecting Angle
120° horizontal
Recording Modes
Motion recording
Time Lapse
YES
Smart Home Compatibility
Google Assistant
Cloud Storage
Supports Reolink Cloud (available in selected countries)
Working Environment
Operating Temperature
-10°C~55°C (14°F~131°F)
Operating Humidity
10% ~ 90%
Weatherproof
YES
Mechanical
Dimensions
Ø85*84*118mm
Weight Battery Included
476g
