Description
Video & Audio
Image Sensor
1/2.7″ CMOS sensor
Resolution
2304×1296 (3 megapixels) @15fps
Lens
f=4mm，F=2.0
Video Compression
H.264/H.265
Field of View
Diagonal: 115°
Horizontal: 88°
Vertical: 50°
Infrared Night Vision
Up to 10 meters (33ft); LED: 6pcs/0.8W/850nm (Auto-switching with IR-cut filter)
Color Night Vision
With spotlights: 2pcs/2W/6500K
Frame Rate
Main stream: 10fps – 15fps (default: 15fps)
Sub stream: 10fps – 15fps (default: 15fps)
Code Rate
Main stream: 1024Kbps – 2048Kbps (default: 2048Kbps)
Sub stream: 64Kbps – 256Kbps (default: 192Kbps)
Audio
Two-way audio

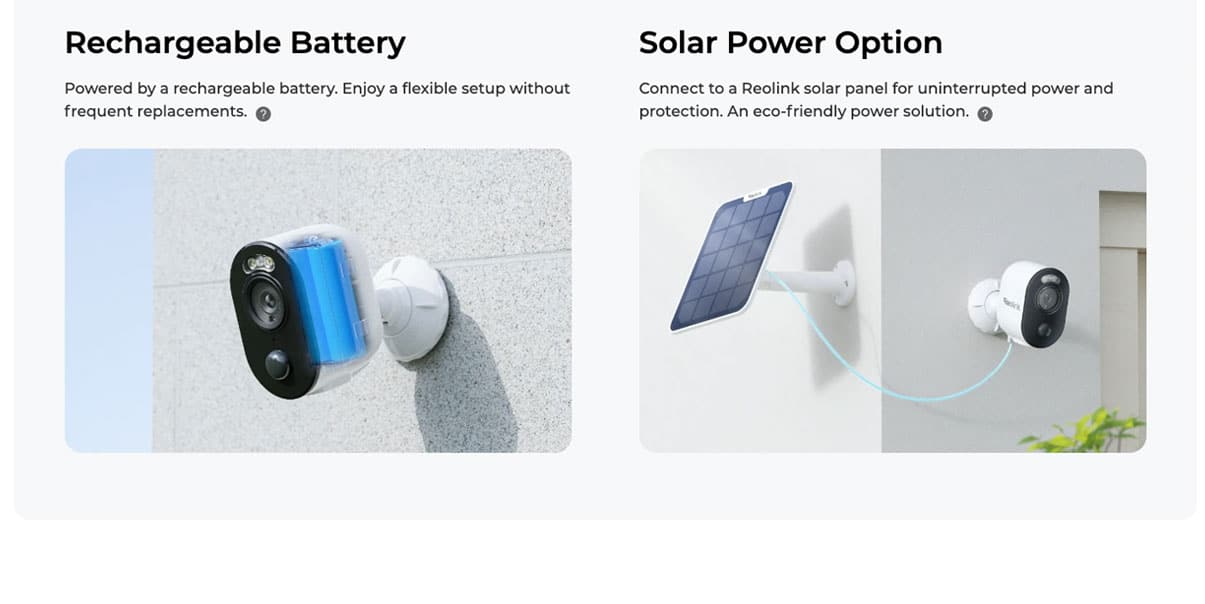

Power
Battery
6000mAh rechargeable battery (Battery life varies based on settings, usage & temperature.)
Solar
Reolink Solar Panel (3W)
Interface
Power Port
USB Type-C port
SD Card Slot
Supports Max. 128GB microSD card
Reset Button
YES
Audio In/Out
Built-in microphone and speaker
Wi-Fi
Wireless Standard
IEEE 802.11 b/g/n
Operating Frequency
2.4GHz
Wireless Security
WPA-PSK/WPA2-PSK
Software
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P
User Access
Max. 12 simultaneous streams (2 main & 10 sub streams)
Other Features
Smart Alarm
PIR detection; motion detection; person detection; vehicle detection; animal detection
PIR Detecting Distance
Adjustable, up to 10m (33ft)
PIR Detecting Angle
100° horizontal
Recording Modes
Triggered recording
Time Lapse
YES
Smart Home Compatibility
Google Assistant
Home Hub Compatibility
YES
Cloud Storage
Supports Reolink Cloud (available in selected countries)
Working Environment
Operating Temperature
-10°C~55°C (14°F~131°F)
Operating Humidity
20% ~ 85%
Weatherproof
IP65
Mechanical
Dimensions
127*90*56mm
Weight (Without Bracket)
239g
